PARTE: 4RI-OMNIA2200 - TALADRO PARA TAQUETES / PERNOS - RILESA - OMNIA 2200

PARTE: 4RI-OMNIA2200 - TALADRO PARA TAQUETES / PERNOS - RILESA - OMNIA 2200

NUEVO CON GARANTIA

Description:

• Drilling from 4 sides : top, right, left, back

• Capacity of up to 22 pcs/min

• Vertical magazine

• One-man operated

Extra:

• Side movement

• Single drop magazine

• Possibility to revers items out of the machine

• Can be integrated in a line of machines

• Waste Conveyer

Workpiece Dimensions

Length:

160 – 1500 mm

160 – 2200 mm

Height:

10 – 40 mm

Width:

25 – 250 mm

Features:

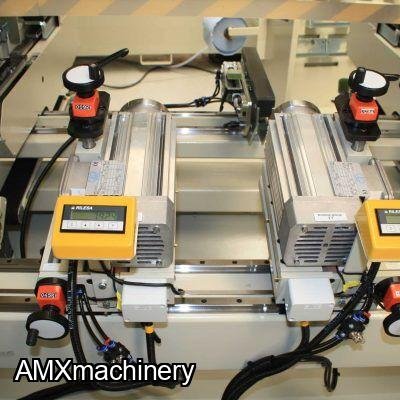

- Digital displays for fast and accurate adjustments in all directions

- Horizontal end drilling

- horizontal drilling from the back

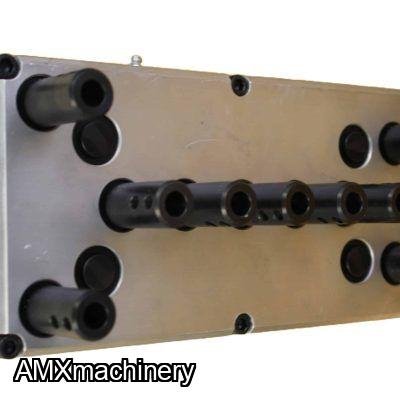

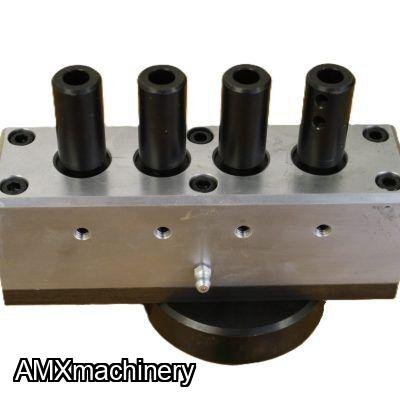

- Standard Rilesa drill box CC32x4

Options:

- Different rapid change spindle systems for drill boxes

- Side movement: Useful function for measurement other than cc 32 mm

- Optional hopper with integrated workpiece separation

- Optional horizontal drilling unit from the back side with an extra long stroke up to 130 mm

- Waste conveyor below machine

- Front elevator for collecting finished items

- Rilesa custom designed drill boxes
